What Are the Types of Refractory Raw Materials Used in the Industry?

Refractories form the thermal backbone of industrial production. From blast furnaces and steel ladles to cement kilns and glass tanks, they protect equipment operating at extreme temperatures. Behind every refractory brick or castable lies a precise mix of raw materials that determines how well it resists heat, corrosion, and thermal shock.

Refractory raw materials include natural and synthetic substances such as alumina, magnesia, silica, zirconia, and carbon. These materials can withstand temperatures above 1,000 °C without melting or deforming. They serve as essential feedstocks for bricks, castables, monolithics, and other refractories used across the steelmaking, cement, and non‑ferrous industries.

Understanding the properties and sourcing dynamics of these materials is critical for both engineers and procurement teams. Price volatility, energy costs, and supply concentration make raw material selection as much a commercial decision as a technical one.

This article explains the main refractory raw materials, their chemical and physical properties, and how they are classified and applied in different industrial processes. It also outlines how procurement teams evaluate and source these materials efficiently through digital solutions such as Metalshub.

• Refractory raw materials, such as alumina, magnesia, silica, zirconia, and carbon, form the foundation of all high-temperature industrial processes.
• Alumina and magnesia are the two most widely used oxides, valued for their high melting points, corrosion resistance, and mechanical strength.
• Prices of core refractory raw materials such as alumina, magnesia, and graphite are highly volatile.
• Metalshub enables buyers to centralise sourcing, comparing specifications, prices, and CO₂ intensity in one platform for faster, compliant decisions.

Refractory raw materials can be grouped in several ways depending on their chemistry, function, and form. Understanding these classifications helps engineers and procurement teams select the right materials for each thermal environment.

A. By Chemical Composition

Materials are designated as acidic, basic, or neutral according to the dominant oxide.

• Acidic refractories such as silica and alumina-silicates resist attack from acidic slags and gases but react with basic environments.
• Basic refractories like magnesia, doloma, and chromite withstand basic slags and are, therefore, preferred in steelmaking furnaces and converters.
• Neutral refractories, including chromia, carbon, and zirconia, remain stable in both acidic and basic conditions, offering versatility in mixed operations.

Procurement teams assess the expected slag chemistry and temperature profile when selecting materials for each zone.

B. By Place of Use & Operating Temperature

Refractory raw materials are matched to the thermal and chemical conditions of each process area, such as blast furnaces, coke ovens, cement kilns, or glass tanks. For example, silica bricks are typically used for coke oven regenerators, and alumina-magnesia-carbon bricks are used for steel ladles.

C. By Manufacturing Process

Raw materials can be shaped (pressed bricks, fused‑cast blocks) or unshaped (castables, gunning mixes). Unshaped monolithics allow quick repairs, while shaped bricks provide dimensional stability.

D. By Physical Form and Compactness

Dense refractory raw materials (fused alumina, dead‑burned magnesia) provide high mechanical strength, while porous materials (insulating fireclay) offer low thermal conductivity and are used as insulation.

Classification may also be based on refractoriness (softening point), slag resistance, thermal conductivity, carbon content, and environmental sustainability. This also influences pricing and availability, since certain grades or processing routes (fused vs. sintered) require more energy and specialised equipment.

The global refractories market is projected to grow from around USD 27.6 billion in 2024 to about USD 38.75 billion by 2033, with a CAGR of nearly 3.65 % over 2025–2033.

The Asia-Pacific region leads in consumption and capacity, capturing nearly half of the global share, driven by growth in the steel, cement, and non-ferrous sectors in China, India, and Southeast Asia.

This market depends on a core set of raw materials that define performance and durability. Among these, alumina, magnesia, silica, and carbon account for the majority of global demand. Their sourcing and processing determine both technical quality and total cost of ownership for end users.

1. Alumina (Al₂O₃)

Alumina is one of the most important raw materials in refractory production. Derived primarily from bauxite ore, it exists as a white crystalline oxide with a melting point of around 2,050 °C and a density between 3.95 and 4.10 g/cm³. Its high thermal conductivity (30–40 W/m·K) and low thermal expansion make it exceptionally resistant to temperature fluctuations, mechanical stress, and slag corrosion.

Major producers, such as Alcoa, Rio Tinto, and Chalco, supply alumina globally. The top-producing countries include Australia, Brazil, and China. Alumina supply is increasingly shaped by energy costs and regional carbon policies, affecting refractory-grade pricing.

Alumina is used in the following refractory applications:

• Blast furnace runners and steel ladle linings
• Cement kiln transition and burning zones
• Petrochemical reactors and reformer linings
• Bauxite-based grog for low-cement castables and shaped bricks
• Tabular and fused alumina for high-temperature monolithics

2. Bauxite (Al₂O₃·nH₂O)

Bauxite is a reddish-brown, earthy mineral composed mainly of aluminium hydroxides such as gibbsite, boehmite, and diaspore. It serves as the primary ore for alumina (Al₂O₃) and a key raw material for producing high-alumina refractories. High-grade refractory bauxite typically contains around 85–90% Al₂O₃, along with minor impurities of silica, iron oxide, and titania. Procurement teams must verify origin and impurity levels to ensure consistent refractory quality.

Beyond its metallurgical use in aluminium production, refractory-grade bauxite is refined through calcination to remove water and improve phase stability. The resulting product is used as a coarse aggregate or fine powder in bricks, castables, and monolithic linings.

High-grade refractory bauxite must meet strict composition thresholds (e.g. Al₂O₃ share, low titania/iron, density >3.35 g/cm³) to be viable; small deviations can degrade refractory performance.

Bauxite is used in the following refractory applications:

• Producing fused alumina
• Aggregate for low-cement castables and shaped bricks to enhance refractoriness

3. Chamotte (Calcined Fireclay)

Chamotte, also known as calcined fireclay, is a heat-resistant material produced by firing selected clays at high temperatures until they partially vitrify. The resulting product contains approximately 60–70% silica and 25–35% alumina, with minor alkalis and impurities. This composition gives chamotte a refractoriness of about 1,659 °C (PCE) and a bulk density of 1.9–2.21 g/cm³.

The texture of chamotte is rough and granular, allowing it to bond well with other refractory materials in both shaped and unshaped products.

Major producing countries include China, Germany, the United States, India, and Brazil. Typical Al₂O₃ contents range from 42% to 100%, depending on the grade and intended application.

Chamotte is used in the following refractory applications:

• Fireclay bricks for steel foundries and reverberatory furnaces
• Coke oven walls and domestic fireplaces
• Backup insulation behind high-alumina or basic refractory linings
• Recycled refractory blends, supporting sustainability goals

4. Chromite (FeCr₂O₄)

Chromite, also known as chrome ore, is a naturally occurring spinel mineral and the primary source of chromium oxide (Cr₂O₃) used in refractory and metallurgical applications. It possesses a melting point of approximately 2,180 °C and a bulk density between 2.5 and 3.0 g/cm³.

Refractories containing chromite (either as chrome-magnesia or magnesia-chrome compositions) are characterised by neutral to slightly basic behaviour, moderate thermal expansion (~1 %), and high slag corrosion resistance.

The majority of the world’s chromite originates from South Africa, Kazakhstan, and Turkey, with key producers including Glencore, Samancor Chrome, Eurasian Resources Group, and Yildirim Group. Sourcing decisions must prioritise ore purity and beneficiation quality to ensure resistance against slag corrosion.

Chromite is used in the following refractory applications:

• Spinel and magnesia-chrome bricks for ferro-alloy and secondary steelmaking furnaces
• Refractory linings in copper, nickel, and platinum smelters
• Casting moulds for high-temperature alloys, where chromite sand improves heat transfer and dimensional accuracy

5. Magnesia (MgO)

Magnesia is a basic oxide with an extremely high melting point of 2,820 °C, making it one of the most heat-resistant refractory materials. Fused magnesia (96–99 % MgO, ≥3.5 g/cm³ density) offers excellent slag corrosion resistance thanks to its high CaO/SiO₂ ratio and purity. It provides strong thermal stability, moderate expansion, and durability under basic steelmaking conditions.

China holds major dominance in magnesia supply, so diversification strategies may be key for European buyers. Buyers sourcing from outside China must consider freight, quality consistency, and import regulatory risk.

Magnesia is used in the following refractory applications:

• Basic oxygen furnaces (BOF) and electric-arc furnaces (EAF)
• Steel ladles and secondary refining vessels
• Magnesia–carbon bricks for high thermal shock resistance
• Gunning mixes and monolithics using dead-burned magnesia

6. Colemanite (Ca₂B₆O₁₁·5H₂O)

Colemanite is a borate mineral primarily composed of calcium and boron, commonly found in evaporite deposits. It appears as a glassy white or grey crystalline material.

Although less common than major oxides, colemanite serves as a fluxing additive in refractories, enhancing the sintering, density, and bond strength of alumino-silicate compositions.

It is used in the following refractory applications:

• Fluxing additive in select refractory and ceramic formulations
• Source of boron in alloyed steel and non-ferrous metallurgy

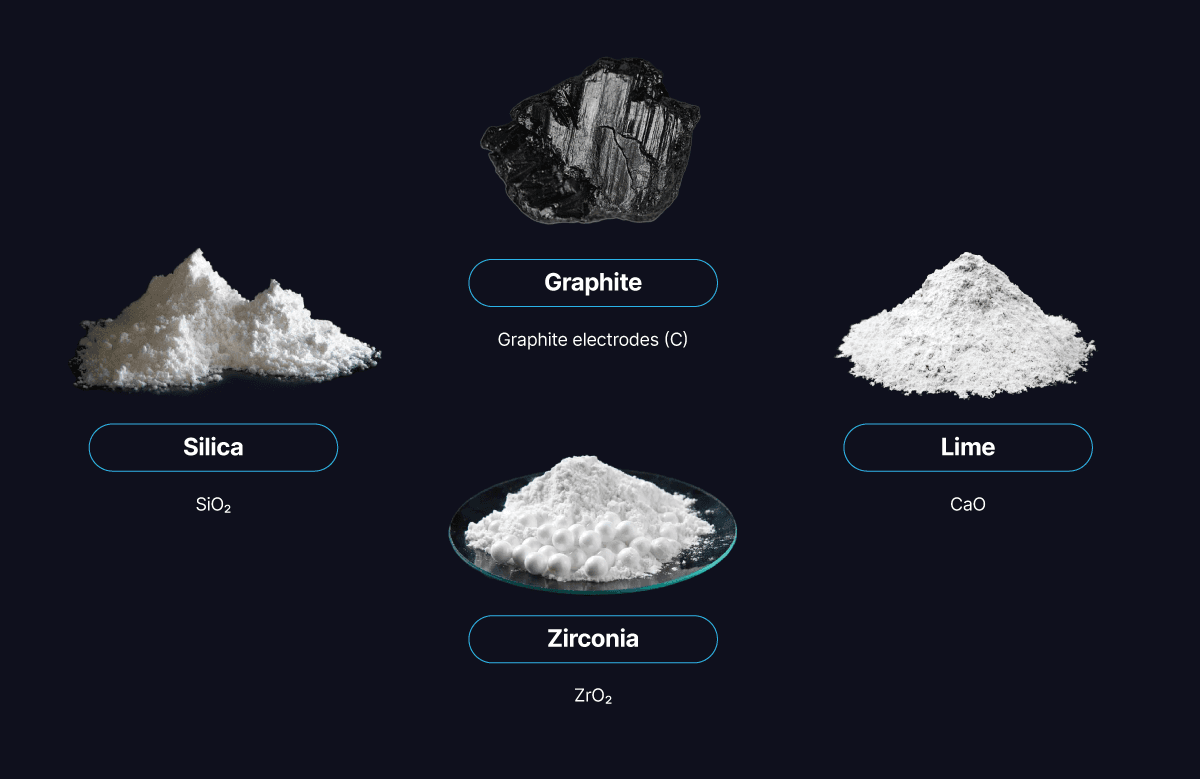

7. Graphite (C)

Graphite, whether natural or synthetic, is a carbon-based material with an exceptionally high melting point of about 3,650 °C. It combines high thermal and electrical conductivity (25–470 W/m·K) with low thermal expansion (1.2–8.2 × 10⁻⁶ °C⁻¹), giving it outstanding thermal shock resistance.

Synthetic graphite, produced from petroleum needle coke, is preferred in ultra-high-power (UHP) electrodes for electric-arc furnaces (EAF), while natural graphite is widely used in carbon-based refractories and metallurgical additives.

However, the production of synthetic graphite is energy-intensive. The cost of raw carbon feedstock, needle coke, and graphitisation depends heavily on electricity prices and carbon tax policies. Any rise in these directly affects the overall cost of refractories and electrodes.

Graphite is used in the following refractory applications:

• Electric-arc and ladle furnace electrodes
• Magnesia-carbon bricks and crucibles
• Slide gates, taphole mixes, and casting ladles

8. Lime (CaO)

Lime, or calcium oxide, is a basic oxide widely used in refractory and metallurgical applications. It has a melting point of about 2,572 °C and a density between 3.2 and 3.4 t/m³, offering high thermal stability under basic slag conditions.
In refractories, lime is primarily combined with magnesia to form doloma (CaO–MgO), a material valued for its resistance to basic slags in steelmaking and cement kilns. Lime-based refractories are integral to decarbonisation strategies in steelmaking, as they enable efficient slag control.

Refractory applications include:

• Doloma (CaO–MgO) bricks for steelmaking and cement kilns
• Fluxing agent in steel and non-ferrous metal refining

9. Silica (SiO₂)

Silica is one of the most widely used raw materials in refractory production, valued for its acidic nature and stability at high temperatures. It occurs naturally in several polymorphs (quartz, tridymite, and cristobalite).

Cristobalite melts at approximately 1,705 °C, while densities range from 2.65 g/cm³ for quartz to 2.32 g/cm³ for tridymite. Silica refractories exhibit low thermal expansion up to the β→α transformation point, along with good thermal shock resistance and mechanical strength at elevated temperatures.

Silica remains one of the most economical refractory materials, widely used where acidic slag resistance is needed. Because it is less costly per ton, transport and logistics account for a larger cost share.

Refractory applications include:

• Coke oven regenerators and checker bricks
• Glass furnace crowns and sidewalls
• Acid-slagging furnaces in iron and non-ferrous metallurgy
• Alumino-silicate refractories for general-purpose linings

10. Zirconia (ZrO₂)

Zirconia is one of the most refractory and chemically stable oxides, with a melting point around 2,720 °C. Because of its neutrality and strength at extreme temperatures, zirconia is used where conventional oxides like alumina or magnesia fail. It resists both acidic and basic slags and maintains integrity in contact with molten metals, glass, and aggressive gases.

Leading producers include Iluka Resources, Tronox, and Rio Tinto, with major zircon sources in Australia, South Africa, and the United States. Although costly, zirconia’s performance under extreme conditions makes it indispensable for specialty metals. Refractory applications include:

• Glass tank crowns and feeder channels
• Continuous casting nozzles and slide gates
• Corrosion-resistant linings for non-ferrous and speciality furnaces

In addition to the primary refractory oxides above, several secondary or additive materials are used to modify performance, improve bonding, or enhance specific thermal properties.

• Calcium: Typically introduced through lime (CaO) or dolomite (CaO–MgO) rather than as pure calcium. It contributes to the basicity of refractories and improves resistance to basic slags in steelmaking.
• Cement: Commonly employed as a binder in monolithic refractories, especially in low-cement and ultra-low-cement castables, where it enhances mechanical strength and sintering during service.
• Cerium: Used occasionally in specialised products such as ceria-stabilised zirconia, providing improved phase stability and corrosion resistance in extreme conditions.
• Boron: Added as boron carbide (B₄C) or borates, it enhances thermal shock resistance, oxidation resistance, and overall structural integrity under cyclic heating.

Selection of these additives depends on both performance targets and sustainability considerations, since their inclusion affects embodied CO₂ and recycling compatibility.

Refractory raw material markets remain highly volatile due to concentrated supply chains, energy-intensive processing, and uneven regional production. Magnesia alone accounts for roughly 10 million tonnes of annual refractory demand, with China representing nearly 70% of global consumption. This dominance makes it a key cost driver for both steel and cement refractories.

Alumina prices have also fluctuated sharply through 2024–2025 as bauxite shortages, rising energy costs, and geopolitical restrictions disrupted supply. Meanwhile, graphite markets continue to mirror oil and coke prices, reflecting their dependence on fossil feedstocks and carbon taxation policies.

For producers, raw materials typically represent 50–60 per cent of total refractory production costs. Even minor shifts in feedstock or freight pricing can translate into substantial downstream impact. Tight impurity limits (Fe, Si, Ti, C) further constrain usable ore supply, forcing many buyers to pay premiums for beneficiation or higher-grade inputs.

Procurement teams now face the dual challenge of price volatility and decarbonisation. As energy and carbon costs rise, buyers are increasingly exploring recycling, secondary sourcing, and verified low-carbon alternatives to stabilise budgets and meet reporting requirements.

Metalshub helps buyers navigate these challenges by providing verified market data, live benchmarking, and transparent CO₂ information across refractory raw materials. With real-time price visibility and supplier analytics, procurement teams can anticipate market shifts, benchmark offers against peers, and plan sourcing strategies with greater certainty.

Refractory procurement requires precision. Buyers must balance price, purity, delivery reliability, and environmental performance across multiple suppliers and regions. Manual comparisons or spreadsheet-based processes can obscure market signals and delay decision-making.

Metalshub centralises refractory procurement in one digital platform. Buyers can benchmark prices, evaluate supplier performance, and access verified chemical and carbon data directly from the platform. Integrated analytics enable sourcing teams to:

• Compare offers on a like-for-like basis across specifications and terms
• Track CO₂ intensity and compliance data to support sustainability targets
• Strengthen negotiation strategies through live market transparency

With over 2,800 companies using Metalshub, procurement teams in the steel, cement, and foundry industries can make faster, compliant, and data-driven sourcing decisions, reducing both cost exposure and administrative effort. Request a demo today.

What makes a material “refractory”?

A material is considered refractory if it can maintain its physical and chemical stability at temperatures above 1,000 °C (1,832 °F). It must resist melting, deformation, slag attack, and sudden thermal shocks during industrial operations.

Which refractory raw materials are considered “critical” or at supply risk?

Magnesite, bauxite, and graphite are on several national critical mineral lists due to geographic concentration in China, Turkey, and Brazil. Zircon and chromite are also sensitive to geopolitical shifts and export regulations. On Metalshub, buyers can access verified suppliers and regional sourcing alternatives to reduce dependency risk.

How are sustainability and carbon footprint measured in refractory sourcing?

Sustainability is typically assessed through the Product Carbon Footprint (PCF): the CO₂ emissions associated with producing one tonne of a given material. The PCF includes emissions from raw material extraction and processing up to the point of sale, based on supplier-provided data and recognised standards.

Metalshub enables buyers to access verified PCF information directly from suppliers. This allows procurement teams to compare materials on technical and carbon performance and report emissions consistently across their supply chain.

Which industries consume the most refractories?

The iron and steel industry accounts for 60–70 % of global refractory demand, followed by cement, glass, petrochemical, and non-ferrous metal sectors. These industries increasingly rely on digital sourcing tools such as Metalshub to manage material quality, cost, and sustainability at scale.
